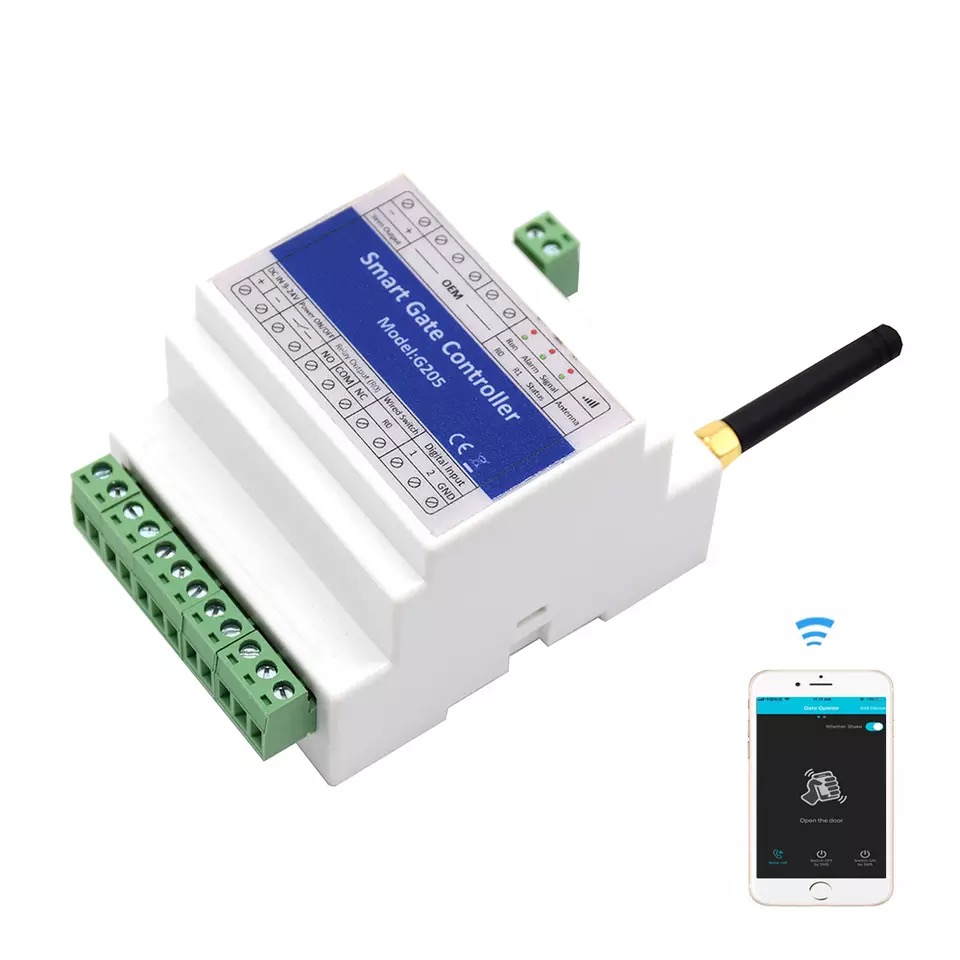

G205 smart gate controller and alarm system

~Phone app control no distance limited
~Support global GSM 3G 4G network communcation frequency
~Up to 200 authorized phone numbers can be authorized

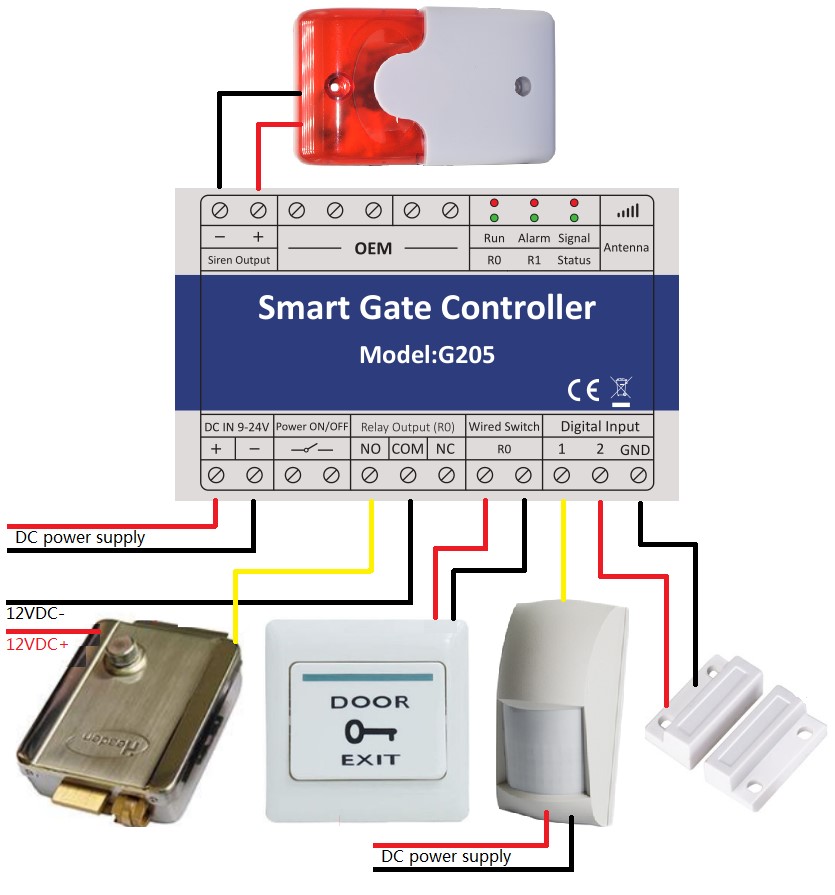

~Support two output ports for siren and switch NO/NC
~Support two digital input ports for sensors connection.(if any of the sensors were triggred,the siren will alarm,in the same time the relay will action as your set and send you alarm message/calling)
~Support one hidden wired swith button port.(in case you forgot to take your phone and phone power off status)
~Support External AC/DC Power status monitoring. if power off/on ,it will send alarm message or alarm calling
~Rechargeable backup battery is optional,battery can run 8hours at least.

~support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66

The GSM Gate Opener G205 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM Gate Opener G205 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.

Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

Moreover, the G205 has 2 digital inputs, when any one of the inputs triggered, will start the siren or switch on the light, in the meanwhile, the G205 will send the Alert SMS to owners immediately. This is very useful if you need protect your assets with low cost solution.

External AC/DC Power status monitoring, AC/DC On/OFF will send SMS to authorized phone numbers.

Inbuilt MCU monitoring the DC input Voltage value, no need additional sensor to save cost.

Rechargeable Backup Battery inside can last 8hours.

Support:

GSM Quad-band 850/900/1800/1900MHz

3G WCDMA 900/2100MHz UTMS

3G CDMA2000 850/1900MHz UMTS

3G 850/2100MHz UTMS

support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66

The GSM Gate Opener G205 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM Gate Opener G205 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.

Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

Moreover, the G205 has 2 digital inputs, when any one of the inputs triggered, will start the siren or switch on the light, in the meanwhile, the G205 will send the Alert SMS to owners immediately. This is very useful if you need protect your assets with low cost solution.

External AC/DC Power status monitoring, AC/DC On/OFF will send SMS to authorized phone numbers.

Inbuilt MCU monitoring the DC input Voltage value, no need additional sensor to save cost.

Rechargeable Backup Battery inside can last 8hours.

Support:

GSM Quad-band 850/900/1800/1900MHz

3G WCDMA 900/2100MHz UTMS

3G CDMA2000 850/1900MHz UMTS

3G 850/2100MHz UTMS

support GSM: Quad-band 850/900/1800/1900MHz

4G: C:GSM:900/1800,

LTE-FDD B1/B3/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

E:GSM:900/1800,

LTE-FDD B1/B3/B5/B7/B8/B20

SA:GSM:850/900/1800/1900M

LTE-FDD B1/B3/B5/B7/B8/B28/B66
